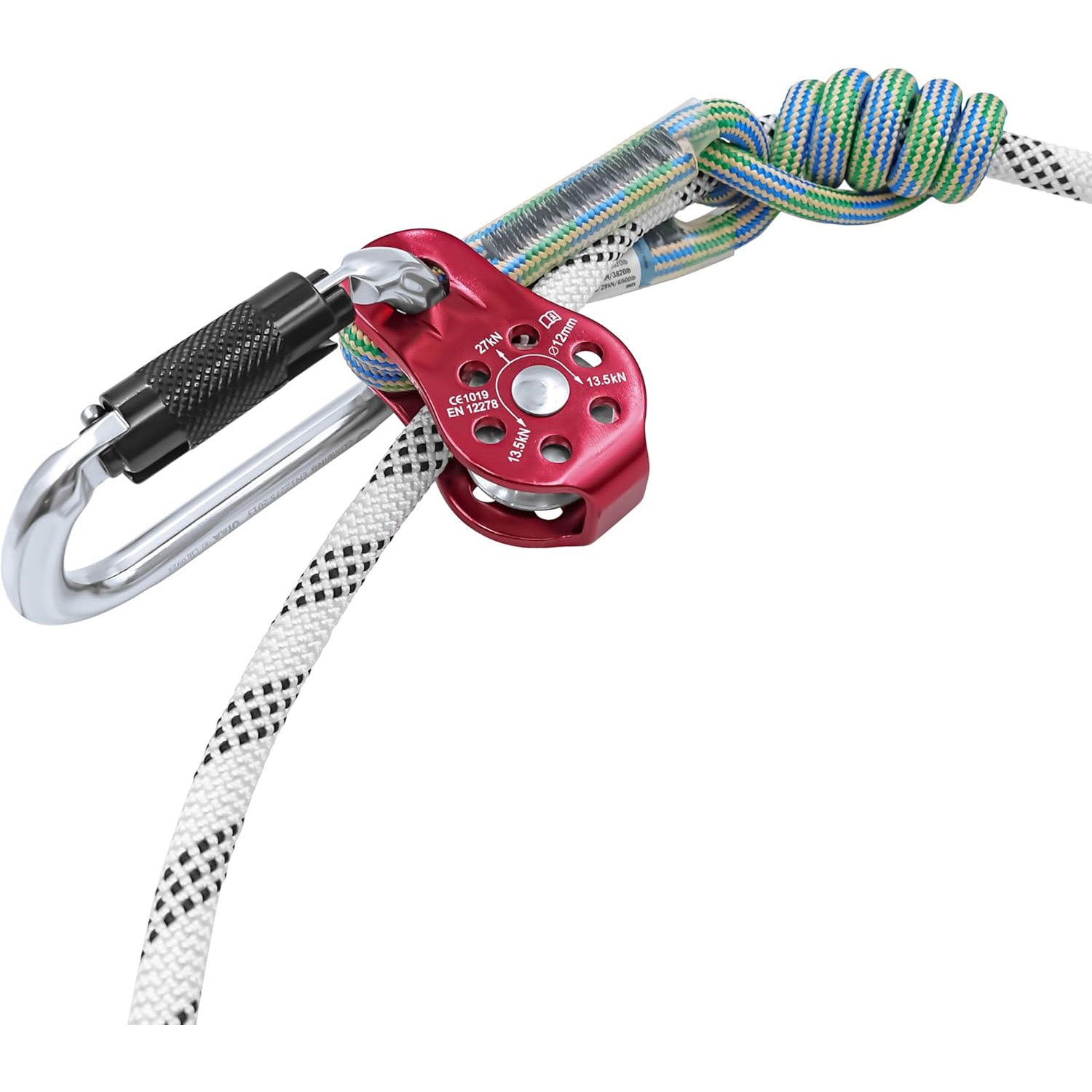

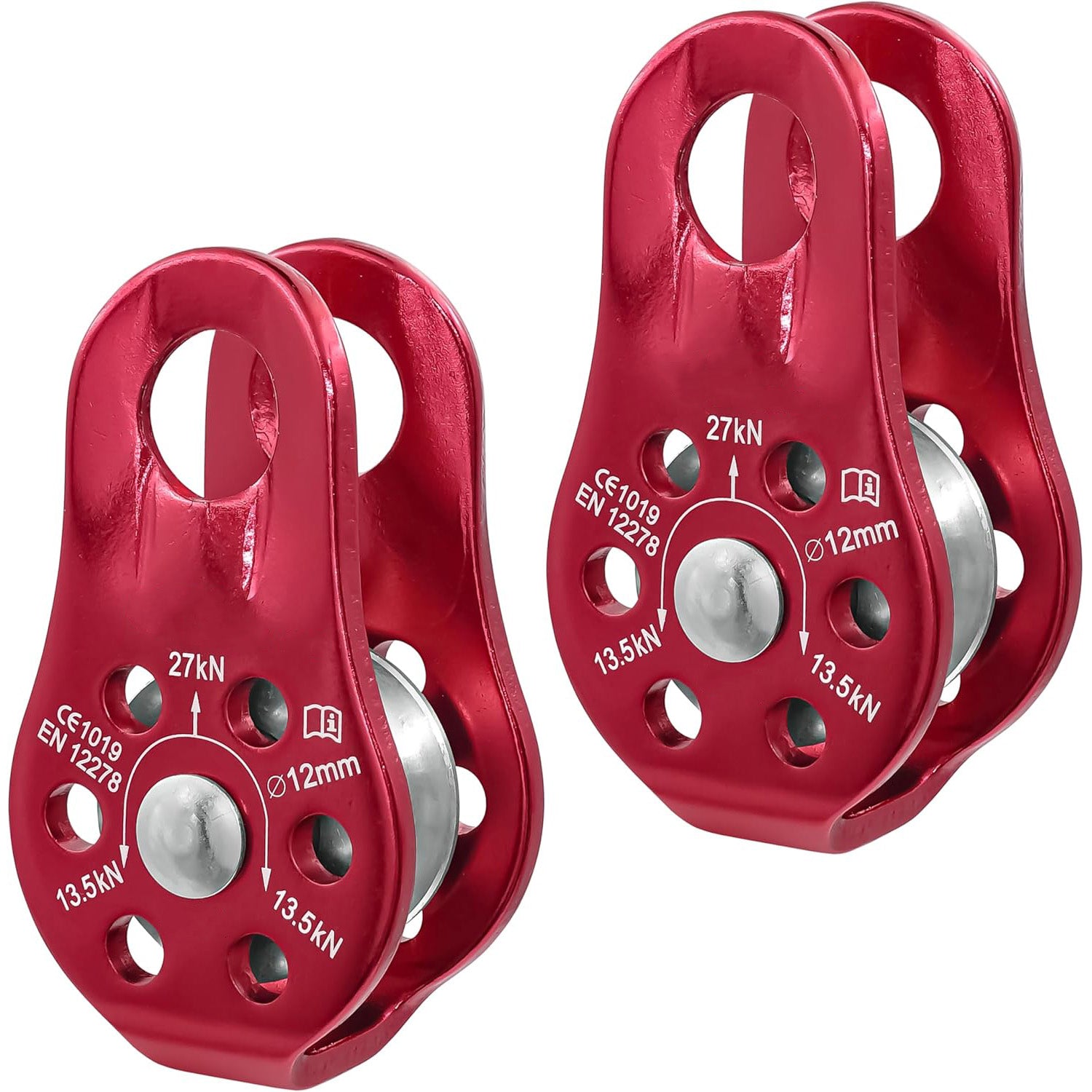

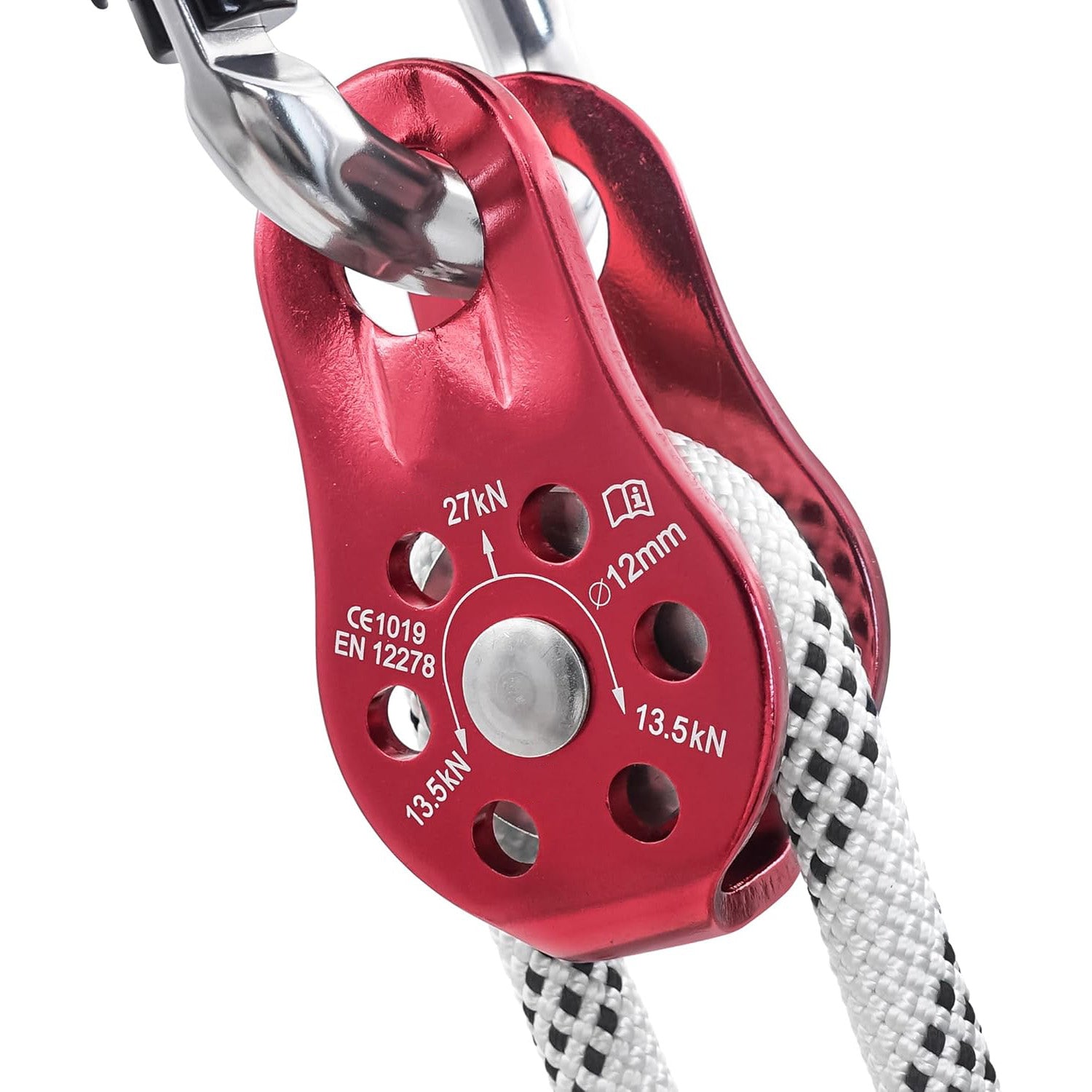

Fixed Mini Pulley - For Tension Adjustment of Pulling Ropes

Product Introduction

This fixed mini pulley is designed for tension adjustment of pulling ropes, ensuring safety during high-altitude or deep-water operations. It is CE and UIAA certified and can withstand up to 27kN of force. Suitable for ropes with a maximum diameter of 12mm (0.47 inches), this pulley is widely used in double-rope climbing systems, tree climbing, work positioning rope adjustments, and self-rescue pulley systems.

Product Features

🔧 Easy to Use

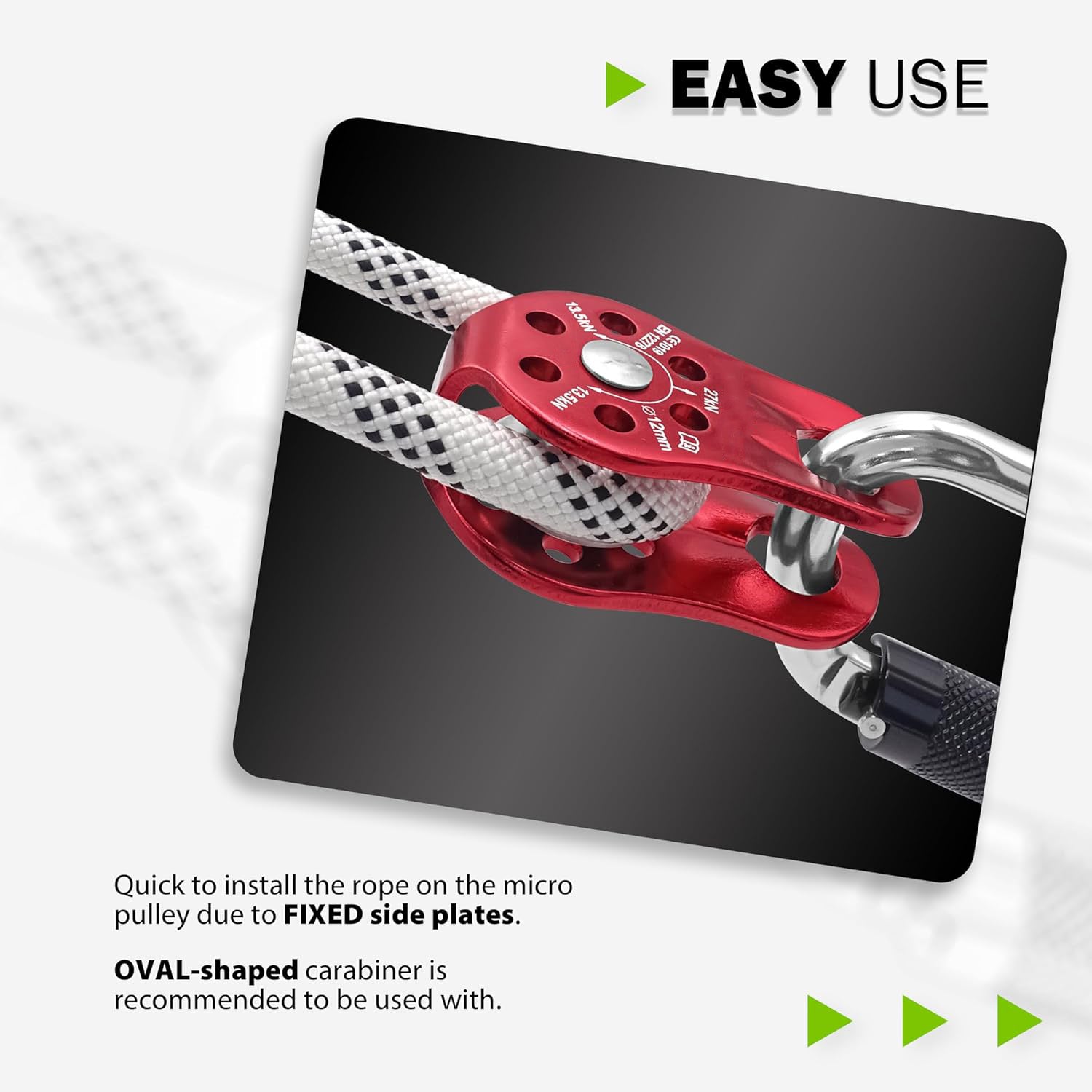

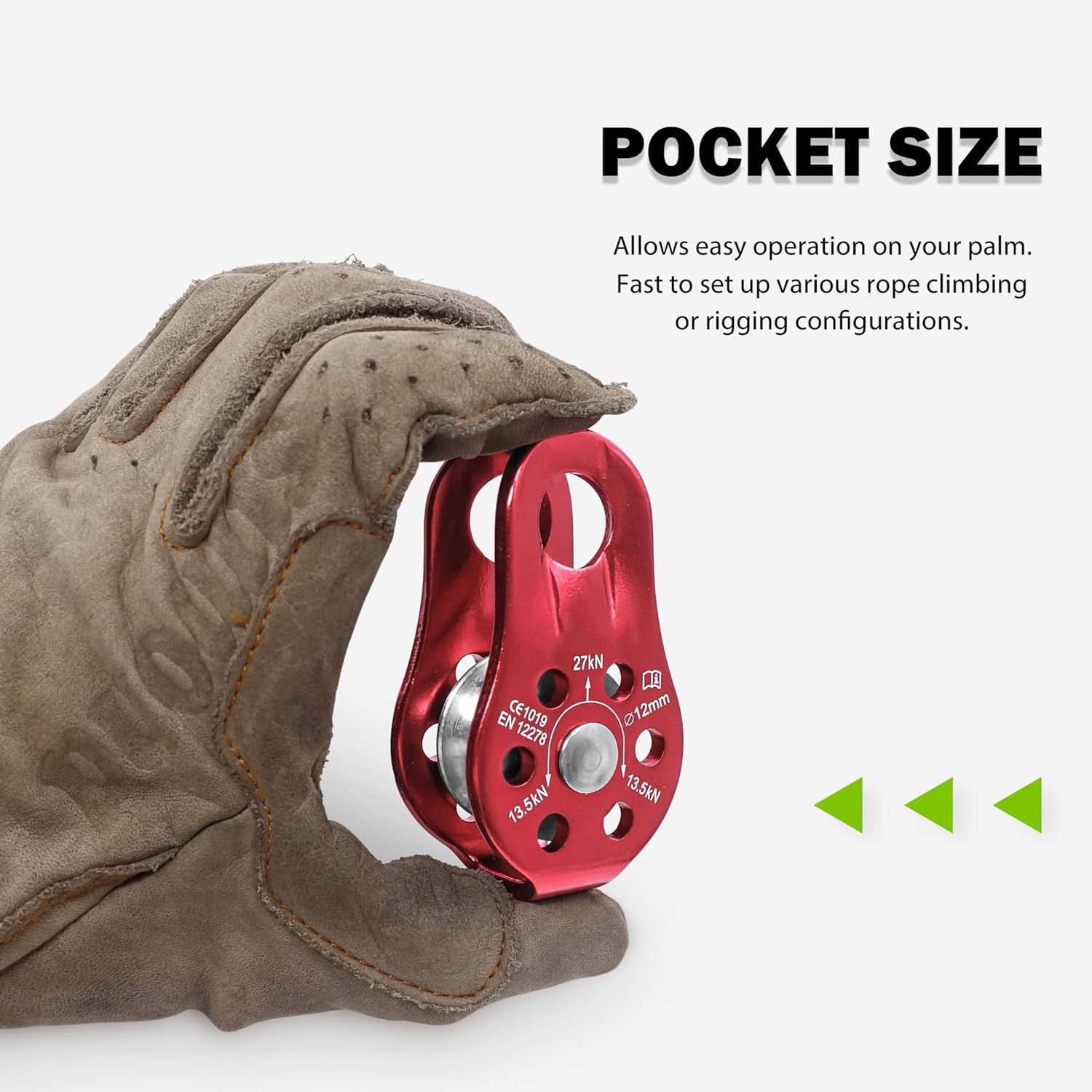

The fixed side plate design makes it convenient to quickly install the rope on the mini pulley. It is recommended to use with an oval climbing carabiner. The pocket-sized design is easy to operate with one hand, allowing for easy setup of climbing or rigging systems.

💪 Powerful Load Capacity
Weighing only 3.05 oz (86.5g), this mini pulley can handle an impressive 27kN of force. It is highly efficient and reliable for tree climbing, work positioning rope adjustments, and self-rescue pulley systems.

🔄 Smooth Rotation, Reduced Wear
Equipped with a self-lubricating bushing, the pulley rotates smoothly, efficiently handling heavy loads. The aluminum side plates with chamfered edges reduce wear on the rope, protecting it and extending the equipment's lifespan.

🏞️ Versatile Application

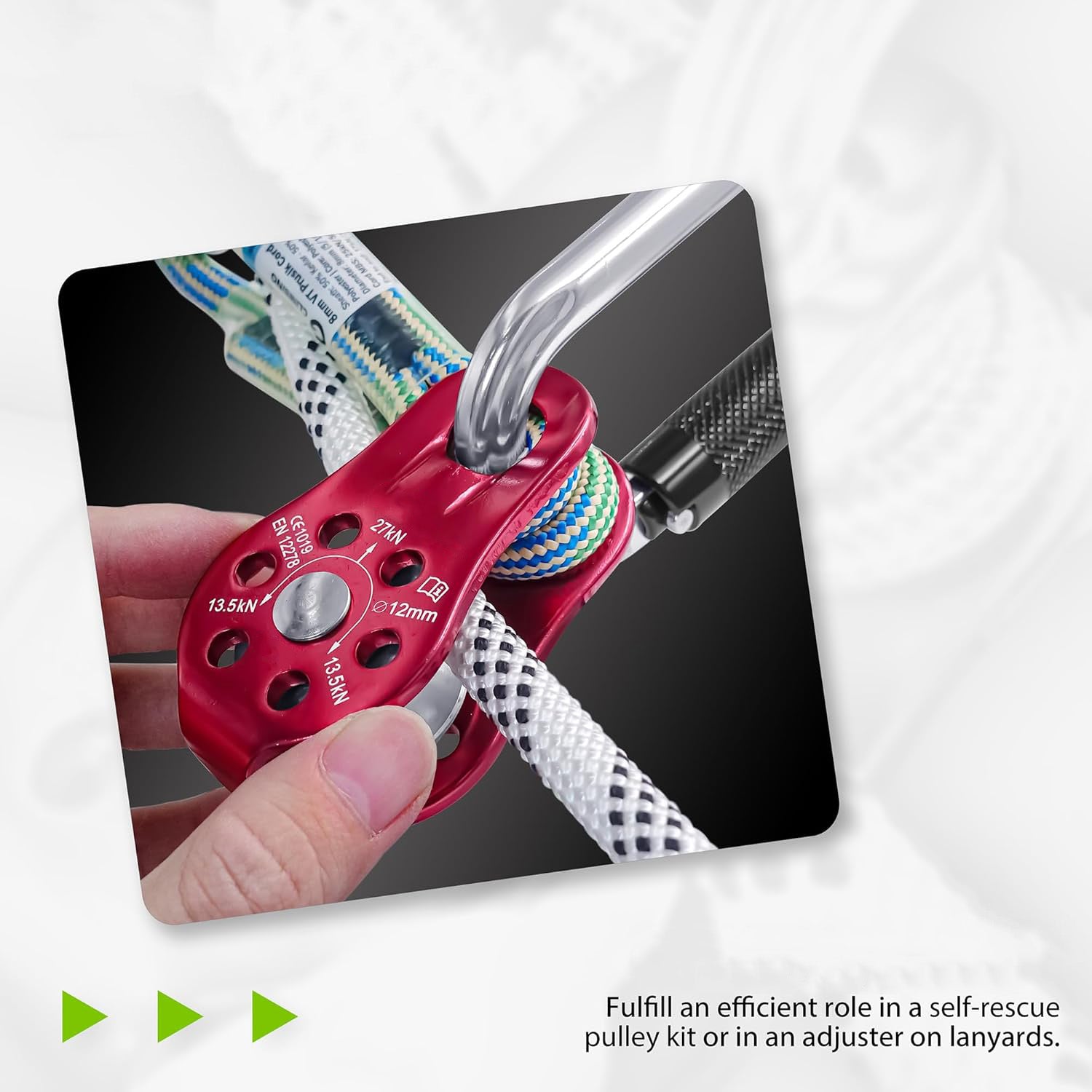

This high-quality mini pulley is commonly used in rope connections for climbing techniques and can be installed on climbing harness rope bridges to reduce wear. Additionally, it serves as an efficient, universal pulley for redirecting in rigging configurations, DIY pulley rope fitness setups, and in mechanical advantage systems for traction and hauling.

Product Specifications

• Load Strength: Max 27kN
• Max Rope Diameter: 12mm / 0.47 inches
• Pulley Diameter: 32mm / 1.26 inches
• Product Dimensions: 3.2 x 1.74 x 1.14 inches / 81.5 x 44.3 x 29 mm
• Net Weight: 3.05 oz / 86.5g

Packaging Includes

• 1 x Fixed Mini Pulley

✨Efficient, reliable pulley solution for climbing and mechanical advantage systems!
